Innovative Wave Vortex
Wave Vortex
Brand: American PINE
Place of origin: USA
Instrument Introduction
In conjunction with PINE's famous rotating disk or rotating disk circular electrodes, and in conjunction with an electrochemical workstation, it is widely used in applications such as chemical power sources, electroplating, metal corrosion, and in research on electrochemical techniques.
Typical applications include:
- Hydrogen fuel cell catalyst research and evaluation;
- Lithium-air battery studies;
- Electrochemical kinetics research;
- Oxygen Reduction Reaction (ORR), Oxygen Extraction Reaction (OER),
- Oxygen Reduction Reaction (ORR), Oxygen Extraction Reaction (OER), Hydrogen Extraction Reaction (HER),
- Carbon Dioxide Reduction Reaction (CO2RR) studies;
- Evaluation and study of corrosion inhibitors;
- Corrosion potential studies of metallic materials, etc.
PINE's rotating disc ring device and electrodes are the most widely used products in the field of electrochemistry in the international arena, and have been mentioned in numerous papers, and their excellent performance can ensure the objectivity and stability of experimental results.
WaveVortex integrates the rotating motor, rotating rod, controller, and shield, and can be used compatible with all MSR accessories such as disk electrodes, disk-ring electrodes, and electrolytic cells.
Technical Parameters
Speed: 100-8000rpm, motor power 11 W, silver carbon brush contact connection.
The speed can be controlled by inputting an external signal (from the electrochemical workstation); the speed signal can be output to test equipment (oscilloscope) or used to control other equipment. The speed signal can be output to test equipment (oscilloscope) or used to control other equipment.
Explosion-proof: The latest explosion-proof design ensures the safety of people and equipment. The protective cover is associated with the motor, so that the motor stops rotating when the protective cover is lifted, thus ensuring safe operation.
Rotating rod: suitable for all kinds of electrolytic cell, convenient to connect with other instruments.
Disk electrode: external thread design, better contact, stable signal transmission. Teflon and PEEK materials are available for different applications.
Diameter of disk electrode: 5.0mm, outer diameter of electrode: 15mm.
Disk electrode: external thread design, better contact, stable signal transmission. Available in Teflon and PEEK to suit different applications.
Disk and ring gap <=320μm, disk and ring dimensional accuracy: 0.01mm, disk diameter: 5.61mm, ring inner diameter: 6.25mm.
Ring I.D.: 6.25mm, Ring O.D.: 7.92mm.
Electrolytic cell: Users can choose standard electrolytic cell or design their own.
Service: Provide installation and training service approved by the original manufacturer.
Key Features

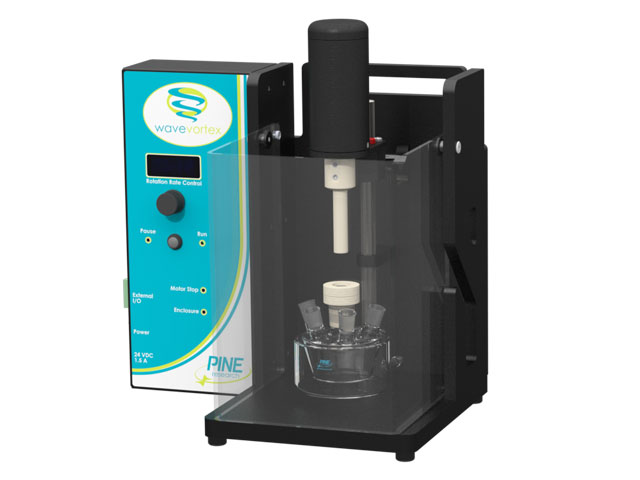

The WaveVortex electrode rotator, model AF01WV10, is the latest rotator developed by PINE. The rotational speed is displayed in LEDs and can be adjusted by the knob below the LEDs over a range of 100 to 8,000 RPM with a display error of 1%. The panel also has a voltage signal output connector, which can be connected to an external voltmeter or a data acquisition system to display the change of the voltage signal.
If desired, an external signal source can also be utilized to adjust the RPM through the interface on the panel. The external signal source can be a sine wave, square wave, or other waveforms. The external acceleration feature of the system allows the speed of the rotating device to be synchronized with the external waveform. This feature is particularly suitable for hydrodynamic regulation applications.
